Comparison of real SVHS tapes with converted VHS tapes

As every SVHS user must have noticed, genuine SVHS video cassettes are considerably more expensive than VHS cassettes are. For some time I have been punching a hole in the base of VHS cassettes to use for less than critical applications, but have not been entirely happy with the results. I present here my initial reactions gained from using these tapes, and also images from an oscilloscope of the result of using various different cassettes to record and replay a test card.

My initial reactions to various punched cassettes were that it appeared that punched cassettes were inferior in the following ways:

• Boosted high frequency response

• Lower signal to noise ratio, especially at higher frequencies

• Increased vulnerability to drop outs

• Occasional sparkling in highly coloured areas, as if the tape had inadequate headroom to cope with the signal

Note that these observations were made with a monitor which has better high frequency performance than any TV which I have used. The HF related problems will not be so visible on an average TV.

I have tried punching a number of different VHS tapes:

• BASF Vision - not too bad

• TDK HSE - Very noisy

• Maxell GX-Black - so so, plenty of noise

• TDK TV-180 - Pretty good

• Memorex Super HQ - Sparkling colour. Bad.

• Scotch EXG+ - Pretty good. No sparklies, few dropouts

• Scotch EG+ - OK

• JVC XR - A bit noisy

The BASF Vision (especially at the price) and Scotch EXG+ gave perhaps the best results.

On the other hand, I've also used a number of different SVHS tapes, which I have found give generally good results ( better than any converted tape ):

• TDK XP

• Panasonic XD

• BASF Master Super S-VHS

More recently, I have tried to measure the performance of some tapes. I did this by connecting my laser disc player to the SVHS recorder and trying out recording he "multiburst" test signal from the "Video Essentials" laserdisc (frame 46619 on side 2) on a selection of different tapes. The signal direct from the laserdisc player looked like this:

While it is obvious that this output isn't completely flat, the best possible result for any recorder would be to exactly reproduce this waveform. This is how they actually got on:

BASF SVHS	BASF SVHS recorded as VHS

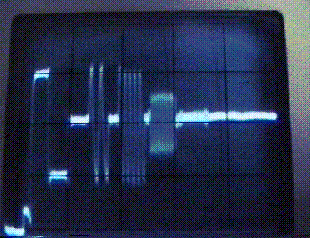

TDK XP SVHS	TDK XP SVHS recorded as VHS
Scotch EXG+, punched for SVHS	Scotch EXG+, recorded as VHS
BASF Vision, punched for SVHS	BASF Vision, recorded as VHS

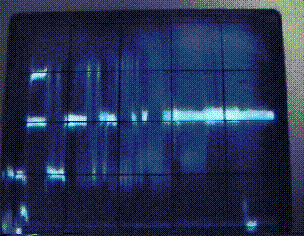

TDK TV, punched for SVHS	TDK TV, recorded as VHS
Memorex SHQ punched for SVHS	Memorex SHQ recorded as VHS

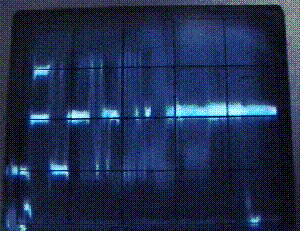

Free Radio Times Promotional tape	ree Radio Times promotional recorded as VHS

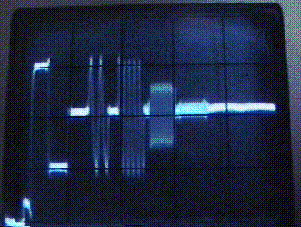

'Noddy' tape punched as SVHS	'Noddy' tape recorded as VHS

Note that even the children's 'Noddy' tape (red plastic, 60m length) and the Radio Times freebie have reasonably similar performance to the more expensive VHS tapes.

Interpretation of results

Here once again for comparison is the original signal, and an SVHS copy:

Note that even a good SVHS tape doesn't capture the highest frequencies (the right most burst of the multiburst) on the disc. My subjective impression had been that SVHS recordings lacked the definition of good broadcast video (which generally has decently high bandwidth in the UK). Also note that the signal looks ragged in comparison to the laserdisc, which I take to be an increase in noise. Noise on the VHS tapes punched to enable SVHS recordings to be made are obviously more "ragged", and visibly more noisy. VHS tapes give better signal to noise performance when used un-punched. It is also noteworthy that the SVHS tapes have slightly worse high frequency response than "proper" VHS tapes when used to record VHS signals, so the use of an expensive SVHS cassette cannot be expected to bring performance improvements for VHS users.

I will probably continue to use the better punched tapes for SVHS recordings. While there is visible extra noise, especially at higher frequencies, on most material the extra bandwidth of the SVHS recording is a worthwhile improvement. The obviously limited resolution of VHS (as below) produces a remarkably murky picture.

My new video tape purchases will all be of SVHS tapes.

Equipment used

Equipment used to produce the test signal, record it and play it back.

• Pioneer CLD-1750 Laserdisc player

• "Video Essentials" Laserdisc - a very useful tool for evaluating the performance of monitors and TVs

• JVC HR-S7000 SVHS VCR, using composite input and output, "Image control" set to "normal" ("rental" is a low pass filter, "edit" gives an apparent very slight high frequency boost)

• Sony PVM-2730 professional video monitor

To produce the graphics for this page:

• Radio Spares oscilloscope (actually a Thandar badged Sinclair SC110 )

• 8mm video camera

• Creative Videoblaster video grabber

The latter combination is largely responsible for the relative lack of quality of the images. If anyone out there is willing to give me a digital camera, I'll do it all again...

This document and the images within it are copyright David Hembrow, 1998.

When this was written, SVHS was relevant and SVHS-ET, which allowed use of non punched tapes for SVHS recording on later SVHS recorders, had not yet appeared. These days it all seems like a distant memory. I do now own a digital camera...
